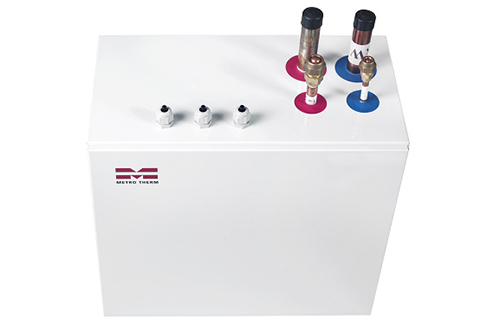

METRO Splitbox is a condensing unit for air-to-water heat pumps that gives you a complete air-to-water heat pump system in combination with a METROAIR L outdoor unit and the METROAIR S20 control module (as well as any necessary safety equipment).
The METRO Splitbox is installed outdoors, where it uses the energy from the outdoor air for room heating (fluid-carrying installations).
METRO THERM design and manufacture the METRO Splitbox in Denmark. Its design meets the newest EU directives and we deliver it ready for installation. The small condensing unit is fully insulated with high-performance polyurethane foam, and has a service-friendly, classic white, steel cabinet. Wall fittings make it easy to install. METRO Splitbox is designed for use with R410A refrigerant.
METRO Splitbox | 6 | 12 | 16 |
---|---|---|---|
Suitable for | METROAIR L6 | METROAIR L8 METROAIR L12 | Output units above 12 kW |
Output | 6 kW | 12 kW | 16 kW |
Pipe connection | Ø22 mm | Ø28 mm | Ø28 mm |
Max. water pressure | 10 Bar | 10 Bar | 10 Bar |
Max. water temperature | 90 °C | 90 °C | 90 °C |
Max. refrigerant pressure | 4,15 MPa | 4,15 MPa | 4,15 MPa |
Max. refrigerant temperature | 110 °C | 110 °C | 110 °C |
Dimensions (H x W x D), mm | 400 x 460 x 250 | 400 x 460 x 250 | 400 x 460 x 250 |
METRO no. | 150261603 | 150261601 | 150261602 |
